Due to its compact and robust design, the visual error detector is ideal for daily use. Use in all fiber optic applications, e.g. in data centers, outdoors, in industrial applications environments, as well as in laboratories. The Visual Faul Locator from Softing IT Networks is characterized, among other things, by with several practical features, such as its special, roll-resistant shape, the cap that is captive against dust and impact and its extremely robust housing. The Visual Fault Locator can be easily and with only one hand and is powered by AAA standard batteries. The practical holder makes it easy to hang up the VFL at any time.

Cable Verification

1 x CM210 with integrated remote
1 x quick start guide

1x CableMaster 500
1x 9V Battery
1x Manual

Same with the Fiber Cable Tests including Access Point Scanner (w/ use of adapter)

Scope of Delivery (CM210)

Resources:

Technical Datasheet

1 main unit
1x RJ45 smart remote
1x RJ45 patch cable (50cm)
1x power supply
1x manual
1x carrying case

Request a Quote

Test tools

verifiers

Tests voice (6 wire), data (8 wire) and video (coax)

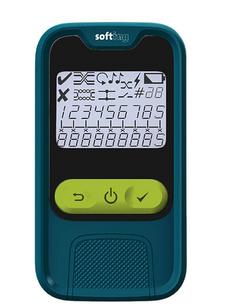

Easy to read, extra large 7-segment LCD screen with large icons
Tone generation over voice, data and video cables, with 4 different tones
Measures length of entire cable and individual wire pairs
RJ (Voice & Data) master remote stores in bottom of case
Maps 20 locations at one time
Tests and indicates pins with shorts, opens, reversals, miswires and split pairs
Displays “Pass” icon for correctly wired T568A/B and crossover/uplink
Displays “Pass” icon for correctly wired 6-pin telephone plus “Rev” for reversepinned
Low power consumption for long battery life
Auto power-off

One tool for testing voice, data and video
Built-in tone generator makes it easy to trace faults and find termination ends of installed cables
Length measurement function allows easy measurement of a cable run or distance to fault

Request a Quote

aRTICLE SOFTING NO. 226103

Linkxpert tp

The best Pocket Size Multitool for easy testing of twisted pair LAN networks

Wiremap
Length
Tone Generator
PoE+++ load tests
Link Speed
Link Light Blink
DHCP
DNS
Traceroute
Network Discovery
Duplicate Adress Scanner
LLDP
CDP
VLAN
802.1x security
MAC Spoofing

Areas of Application

RJ45 socket
Support of 24 remote identifiers
Display of cable faults according to TIA568 specification
Removable remote unit allows testing of long cable runs
Test of cables up to 304 m in length
Tone generator - can be used for cable tracking with a tone tracker (optional accessory)
Large, backlit LCD display with all test information, including PASS or FAIL indication
Very easy operation via dedicated function keys
Compact size

Convenient and cost effective cabling test in a compact tester.

Fast and cost-effective cabling test is a must for modern networks to quickly find network faults. Also, the perfect tester for pre-testing cabling prior to actual acceptance testing, making it a must-have in the cabling installer's toolbox.

1 CableMaster 500
1 Cable Probe CP15
1 RK305 (RJ45 and F-Adaptor) (1-5)
1 Cable assembly RJ45 to alligator clips
2 RJ45 Cables
2 9V Batteries
1 Manual
1 Soft pouch

Scope of Delivery (LinkXpert TP)

Detection of mechanical damage to the fibre
Fiber end detection
Luminous range over a maximum of 5 km (typically and under normal lighting conditions)
Generates visible laser light in the wavelength range of approx. 635 nm (red). With a transmission power less than 1 mW, the device is classified in laser class 2 (IEC 60825-1:2014)

The VFL 5000 is used for continuity testing and fault location on optical fibers and components in singlemode and multimode area. Depending on the application, a range of more than 5 km can be achieved. A universal adapter enables the Connection of all common 2.5 mm optical connector systems. An adapter for 1.25 mm is also available. The operating time is in flashing mode approx. 40 hours.

Request a Quote

Large, backlit LCD display
Clear, graphical display of cabling wiring diagram
Dedicated keys for all test functions
Built-in tone generator, compatible with all Softing transducers, for cable tracing

Application

Red Light Laser
SFP Transmit & Receive Power Levels
Link Speed
Link Light Blink
DHCP
DNS
Ping
Traceroute
Network Descovery
Duplicate Adress Scanner
LLDP
CDP
VLAN
802.1x security
MAC Spoofing

END OF LIFE

Scope of Delivery (CM550)

Extensive network diagnosis with a hand held device for network commissioning and maintenance on copper
Optimized for copper testing up to 1Gb/s and PoE++ 90 W
Comprehensive documentation capabilities, internal PDF generator and external test management software

LinkXpert TP is the perfect companion to troubleshoot copper cabling as well as LAN Ethernet problems both in SoHo and office environments as well as in industrial applications. The device offers a unique combination of cabling tests and extensive ethernet network diagnosis to help users solving daily issues in Ethernet networks and to keep the network up and running 24/7. For commissioning networks, LinkXpert can run automated tests that can be configured by the user. For example if new PoE switches had been rolled out, LinkXpert can be configured to just test PoE up to 90W and obtain port information like LLDP. For troubleshooting, users can also run all tests individually.

aRTICLE SOFTING NO. 226546

VFL 5000

Visual Fault Locator

Testing the cabling for gross wiring errors
Troubleshooting of the cabling in case of network failures
Pre-testing of the cabling before acceptance measurements

Scope of Delivery (VFL 5000)

Wiremap
Length
Tone Generator
PoE+++ load tests
Link Speed
Link Light Blink
DHCP
DNS
Traceroute
Network Discovery
Duplicate Address Scanner
LLDP
CDP
VLAN

Request a Quote

Scope of Delivery (LinkXpert M3)

Copper, Coax:

Most verification tools check on basic continuity of copper and coaxial connections. Wiremap and toning are the basic functions. Most advanced test tools include additional features such as Time Domain Reflectometer (TDR) to determine cable length, identify a faulty spot or connection with a switch.

Fiber:

On the fiber side, a simple Visual Fault Locator (VFL) could be considered a verification tool as it verifies contiguous fiber connections and fiber polarity.

Extensive network diagnosis for network commissioning and maintenance on all 3 media (copper, fiber and Wi-Fi) in a hand held device
Future proof performance with 10Gb/s and PoE++ 90 W
Automated PASS/FAIL certification of fiber optic connector end-faces with Softing fiber microscope (optional accessory)
Fiber optic polarity check with visual fault locator
Comprehensive documentation capabilities, internal PDF generator and external test management software

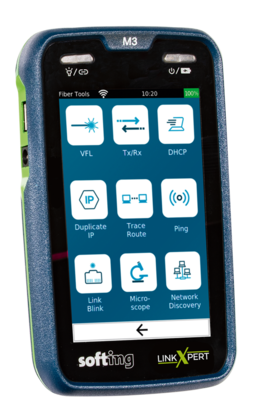

LinkXpert M3 is a versatile cabling and network trobleshooter that helps solving network issues from cabling up to complex Ethernet related problems. With connectivity to all 3 media, copper, fiber and Wi-Fi, LinkXpert M3 is perfect for diagnosing any common LAN Ethernet media. The device offers a unique combination of cabling tests and extensive ethernet network diagnosis on copper, fiber and Wi-Fi to help users solving daily issues in Ethernet networks and to keep the network up and running 24/7. For commissioning networks, LinkXpert can run automated tests that can be configured by the user. For example if new PoE switches had been rolled out, LinkXpert can be configured to just test PoE up to 90W and obtain port information like LLDP. For troubleshooting, users can also run all tests individually, e. g. just use the optional video microscope to inspect fiber optic connectors.

Was the cable installed correctly ?

Verifiers are "must have tools" for network technicians and contractors. They give a reliable answer on the question above in a very low cost. Verification test tools allow you to see if the cable is properly connected. In some cases, there are more features and functions integrated in a verifier.

That being said, verification tools are simple-to-use low cost tools that are often the first line of defense in finding cabling problems.

That being said, verifications tools are simple-to-use low cost tools that are often the first line of defense in finding cabling problems.

aRTICLE SOFTING NO. 226512

Cablemaster 500/550

Cable Tester & Fault Locator

Fiber Cable & Network Tests

Fast verification and troubleshooting of cabling
Extremely easy operation and graphical display of the wiring diagram

aRTICLE SOFTING NO. 226104

Cablemaster 210

Resources:

Technical Datasheet

Quick Start Guide

Wireless LAN Network Tests

Resources:

Technical Datasheet

Built-in LED Flashlight
Easy-to-read Large Backlit LCD Display
Glow-in-the-Dark Buttons
Audible Beep for Additional Feedback
Ergonomic Slip-resistant Side Grips
Self-stored Master Remote - Squeeze remote at finger grip openings in main unit to remove
RJ45, RJ12 and F-Jack on Main Unit and Remote

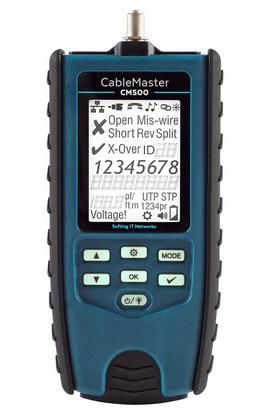

The CableMaster 500 is designed to test and measure lengths of all common low voltage cabling found in today’s network, video or telephone systems. It also maps the locations of cable ends by sending a tone on the cable that can be traced with a tone tracer or by blinking the LED on the port jack. The CableMaster 500 has a large, bright backlit LCD display and glow-in-the-dark buttons to directly access each function. The remote stores inside the main unit for ease of cable testing.
