Package Contents
- Ekahau Sidekick 2 unit
- Messenger strap
- Power supply
- USB-C – USB-C cable
- Quick guide setup instructions
Bring every predictive Wi-Fi network to life with validation and visualization designed for any dual or tri-band network.
If You Want Great Wi-Fi, You Need a Sidekick 2
validate and visualize the 6ghz world
The fastest, most precise Wi-Fi testing and measurement device now supercharged and tuned for 6 GHz (Wi-Fi 6E), 5 GHz, and 2.4 GHz.
Invaluable Insight is Always at Your Side
4 Enterprise-Grade Tri-band Wi-Fi Radios
Capture more data in less time with 4 tri-band Wi-Fi radios that scan 2.4, 5 and 6 GHz frequency bands faster than the original Sidekick scans just 2.4 and 5. Sidekick 2 is nearly 100% faster for dual-band surveys and 33% faster when surveying tri-band networks.

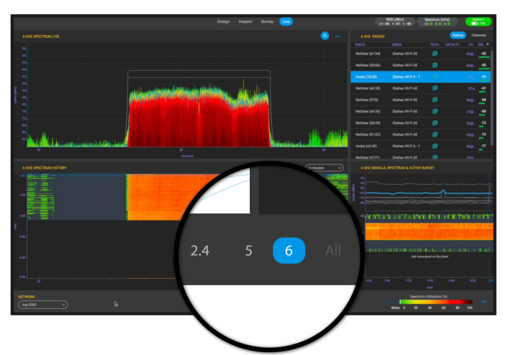

50 Sweeps/s Spectrum Analyzer
See the invisible Wi-Fi spectrum from 2,400–7,125 MHz in brilliant high definition with the fastest refresh rates so you’ll never miss a microsecond of interference. Capture quicker interference events and zoom in to the smallest details with 4X better resolution bandwidth.
With a sleek, mobile form factor and all-day battery life, your Sidekick 2 is always ready to survey and analyze any combination of 2.4, 5, and now 6 GHz wireless networks. Sidekick 2 features the largest battery allowed on commercial airlines (we checked) so you can optimize Wi-Fi domestically or abroad and never run out of juice. Dongles and external adapters can be serious battery drains, but with Sidekick 2 you get more than a full day of onsite surveying on a single charge. And with the all-new USB-C quick charger, top off for an extra 4 hours of active use in just 1 hour of charging.
Now Featuring USB-C Connectivity
Charge faster and with improved reliability thanks to a USB-C connection port that’s always the ‘right way’ no matter how you plug it in. The snug fit and reinforced cable management channel takes the pressure off your connection and reduces the chance of an accidental mid-survey disconnect.
You can’t guess with Wi-Fi. From floor plan scale and wall material attenuation, to environmental interference and validation measurements — accuracy matters. Ekahau Sidekick 2 is the fastest, most advanced Wi-Fi performance testing and measurement device on the market, lab calibrated to deliver pinpoint accuracy for reliable and repeatable Wi-Fi signal and spectrum data capture.
Save time and money by getting AP placement right the first time and rest easy knowing you have what you need to identify and address Wi-Fi issues before they lead to costly outages. Put simply — if you want great Wi-Fi, you need Sidekick 2.
Request a Demo
Get a Quote
Sidekick 2 ensures awesome results whether you’re a wireless networking pro or a novice. The device does the heavy lifting so anyone can level up and become a Wi-Fi superhero performing accurate health check surveys and collecting detailed spectrum analysis data to share with collaborators via Ekahau Insights. Accuracy matters with Wi-Fi and Sidekick 2 is the easiest path to having always-accurate site survey and Wi-Fi performance data for your network.
Take full advantage of the upgraded speed and channel availability of Wi-Fi 6E with a network design that’s been validated for 6 GHz by the most trusted name in Wi-Fi design. With 4 enterprise-grade tri-band Wi-Fi radios, Sidekick 2 scans more data across more channels than any other Wi-Fi measurement tool giving you the clearest picture of your Wi-Fi health, and ensuring the highest level of performance for your Wi-Fi users. Support your next-gen business applications with the unprecedented speed and reliability of your Ekahau-perfected 6 GHz network design.
Unrivaled Speed and Accuracy
TECHNICAL SPECIFICATIONS
Optimized for Ekahau Connect Mobile Apps
Solution Requirements
- macOS or Windows laptop or tablet capable of running Ekahau AI Pro macOS 10.11 (El Capitan–Monterey)
- iPhone & iPad requirements: iOS 12 or higher required, iPad Pro or iPhone 13 Pro recommended for optimal performance Memory: 8GB RAM, 16GB+ RAM recommended
- Android requirements: Android 12 or higher
- Ekahau Connect Subscription required for full functionality (includes Ekahau Survey, Ekahau Analyzer, Ekahau Insights, Ekahau Capture, Ekahau Cloud)
Spectrum Analysis
Scan the electromagnetic spectrum to check live network health and identify interferers with easy to use mobile apps for iOS and Android.
Device Specs
- Dimensions: 155 mm x 226 mm x 39 mm (7.14” x 8.9” x 1.54”)
- Weight: 1080 g (2.4 lbs)
- Battery: 96.4 Wh Li-ion
- Power Supply: USB-C 20V/3A
- Operating temperature: +5…+35° C
- Storage temperature: -20° C ~+60° C
- Storage: 120 GB SSD
- Hardware warranty: 1 year (3yr extended warranty available)
Battery Specs
- Typical site survey: 2 working days on a single charge
- Quick charge: Top off for an extra 4hrs of active use with 1hr charge
- Rechargeable Li-ion: 96.4 watt hrs (Largest available on commercial airlines per FAA guidelines)

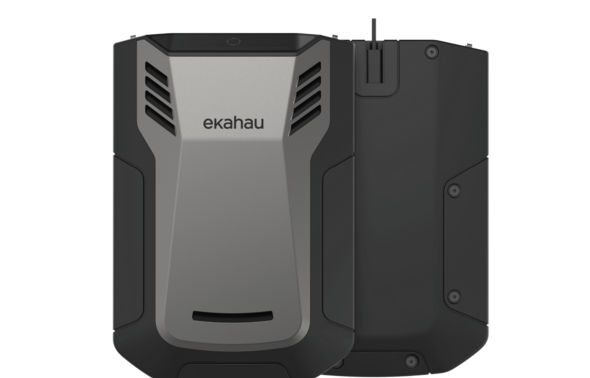

the hardware
ekahau sidekick 2
The new levels of accuracy available with Sidekick 2 allow you to not only identify your Wi-Fi signal strength at every point of your network, but also measure your network health and provide early detection for environmental changes that can negatively impact your network. With Sidekick 2, you can ensure your Wi-Fi is always optimized and ready to meet the connectivity needs of your business.
Save time and money by getting AP placement right the first time and address Wi-Fi issues before they lead to costly outages.
Capture the clearest picture of your Wi-Fi performance with 4 tri-band radios and a spectrum analyzer that scans at 50 sweeps/second.
With Sidekick 2, our Ekahau Connect mobile apps are more powerful than ever before
(and don’t worry, you can still use Sidekick 2 with your laptop, too).
Survey All-Day Battery
Built with the largest battery allowed on commercial airlines, Sidekick 2 powers more than a full day of onsite surveying on a single charge and can even be topped off for an extra 4 hours of active use with just 1 hour of charging.
Whisper-Quiet Active Cooling
The active cooling system in Sidekick 2 maintains optimal operating temp in harsh conditions. It’s whisper quiet and just one of the many reasons that Sidekick 2 is so cool.

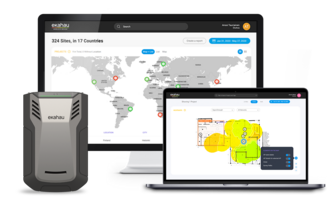

Insights Analytics
View global network performance analytics and share Sidekick 2 survey results with anyone on your team (even guests!) to view in browser.
powerfully easy to use
The Accuracy that Informs Performance
Validate 2.4, 5, and 6 GHz Wireless Networks
Watch ekahau esk2 in action
9 Custom Wideband Antennas
Get unbeatable accuracy and reliability with 9 custom-designed 3D antennas positioned for optimum omnidirectional measurement consistency. By eliminating variances between devices, you can trust the data collected is always accurate and actionable.
Get it Right the First Time
ESB Commercial Agents Ltd.
Reach us at: support@esbagents.com

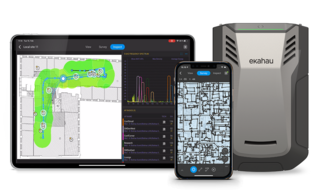

Mobile Site Surveys
Perform incredibly accurate site surveys with just the Sidekick 2 and your Android or iOS device.
